IK protection classes

The IK protection class characterizes the mechanical resistance of enclosures of electronic equipment against external shocks and impacts.

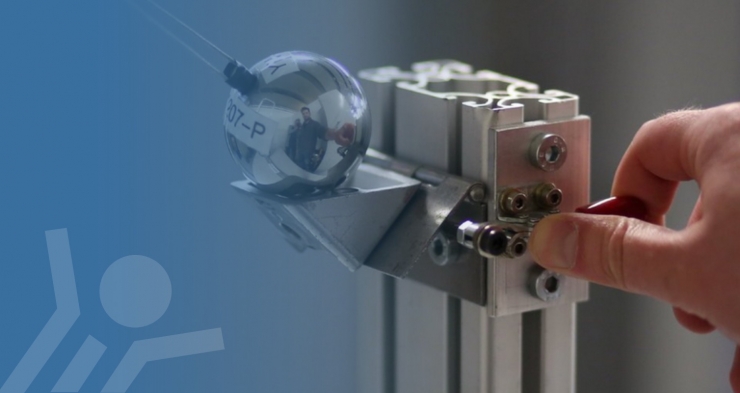

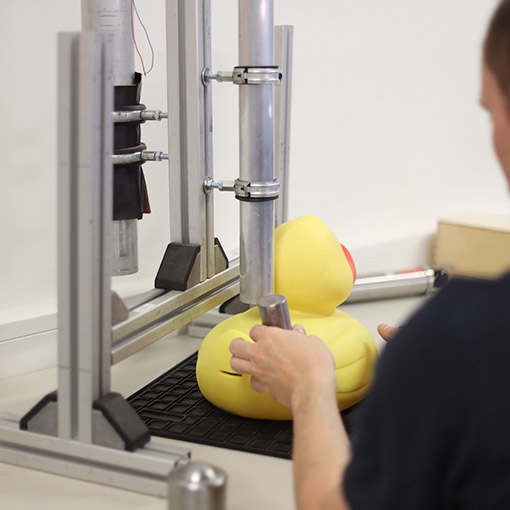

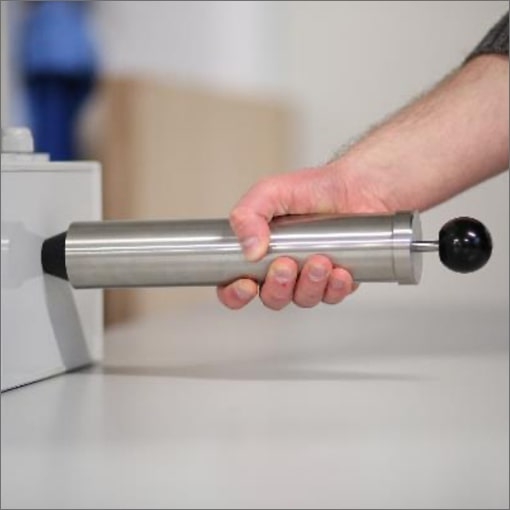

During the tests, different test geometries with defined impact energies act on the test object.

With the flexible test equipment in our laboratories, we can test objects of different sizes.

IK protection class
Impact energy
IK00
No impact strength
IK01
0,15
IK02
0,2
IK03
0,35
IK04
0,5
IK05
0,7
IK06
1
IK07
2
IK08
5
IK09
10
IK10
20

The standards and procedures in this area include the following:

  • DIN EN 50102 Degrees of protection provided by enclosures for electrical equipment against external mechanical impacts (IK code)
  • IEC 62262 Degrees of protection provided by enclosures for electrical equipment against external mechanical impacts (IK code)
IK protection classes
IK protection classes
IK protection classes
